Full-Race Ford Raptor & F-150 V2 Intercooler Kit

Our V2 Intercooler is the strongest and highest flowing intercooler ever developed for the Gen2 Raptor and F-150 EcoBoost. Featuring aerodynamic cast end tanks with internal flow dividers supporting a 1000cfm flow rate (70% more internal flow area than stock), and <1psi pressure drop at 700+hp airflow levels. The stock EcoBoost intercooler location is less than ideal for cooling, but it also doesn’t help if you’re planning to install a winch, steel bumper, or run a snowplow, while our Intercooler allows for installation of all the above. Each and every unit is leak tested to 50psi (even small pinhole leaks can cause loss of power.)

Applications:

• 2011-2020 Ford F-150 Ecoboost 3.5L and 2.7L
• 2017+ Ford Raptor Ecoboost
• May fit other applications with slight modifications

F-150 is a tough truck that will be subjected to work site and off-road abuse, high strength and durability are critical. Whether upgrading for increased performance or adding a winch / prerunner bumper – Intercooler upgrades are the recommended first modification for turbocharged EcoBoost engines.  Also known as the CAC (charge air cooler), the stock F-150 CAC is located below the radiator in the lower front grille area. The OEM EcoBoost intercooler uses a thin aluminum core crimped to plastic end tanks, allowing ‘heatsoak’ (intake air temperatures rise uncontrollably) and a corresponding reduction in power.  The stock intercooler can not fit a winch or aftermarket bumper and it can’t handle increased airflow from larger turbos or a tuned F-150 with stock turbos. In comparison, we use an aerospace quality intercooler core and our end tanks are expertly TIG welded in precise fixtures. The lower support beam is hand-fabricated from high strength steel then powder coated black. Using 3″ inlet / 3″ outlet, the coldside charge pipe is available with water/meth bungs as requested.  Click Here for Independent Test results

Ford F-150 EcoBoost Front Mount Intercooler Kit Features:

• High-efficiency core designed specifically for the 2.7L, 3.5L and Gen2 Raptor V6 EcoBoost engine
• CFD optimized high strength cast end tanks using ANSYS software
• Optional aluminum bungs on charge pipe to suit Water/Meth injection nozzles
• Retains OEM sensors and purge solenoid fittings – no tuning required
• Optional Black Coating available for stealth appearance
• Allows EcoBoost F-150’s to use a off-road pre runner bumper (This is a custom piping option that must be specified when your order is placed)
• Allows fitment of approved snowplow mounts and other accessories, WARN Winch Compatible using Swarfworks Bracket

Full-Race’s Ford F-150 EcoBoost Intercooler / CAC Upgrade Kit Includes:

• Front Mount Intercooler core with >1000cfm flow rate (70% more internal flow area than stock), using oversized 10mm charge air and 10mm ambient air paths (larger than the stock 6.5mm size) for <1psi pressure drop at 600+hp airflow levels.  17.8L internal volume
• Intercooler Lower Mounting Beam
• Intercooler Upper Mounting Bracket

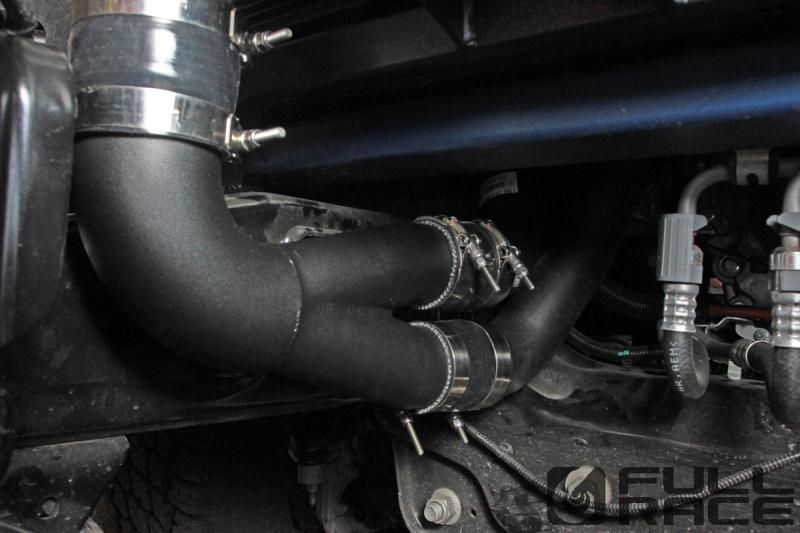

• Aluminum Charge Piping (Hot and Cold Side)
• Couplers and Clamps
• Horn Relocation Bracket
• Adaptive Cruise Control Relocation Bracket
• Optional Black Coating
