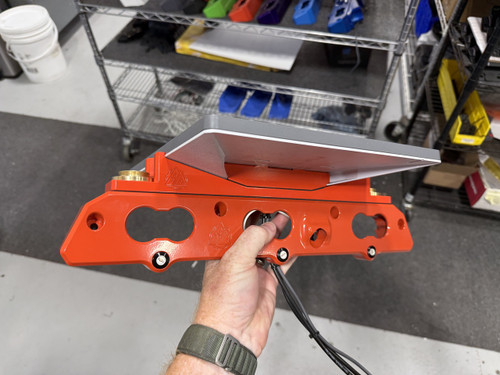

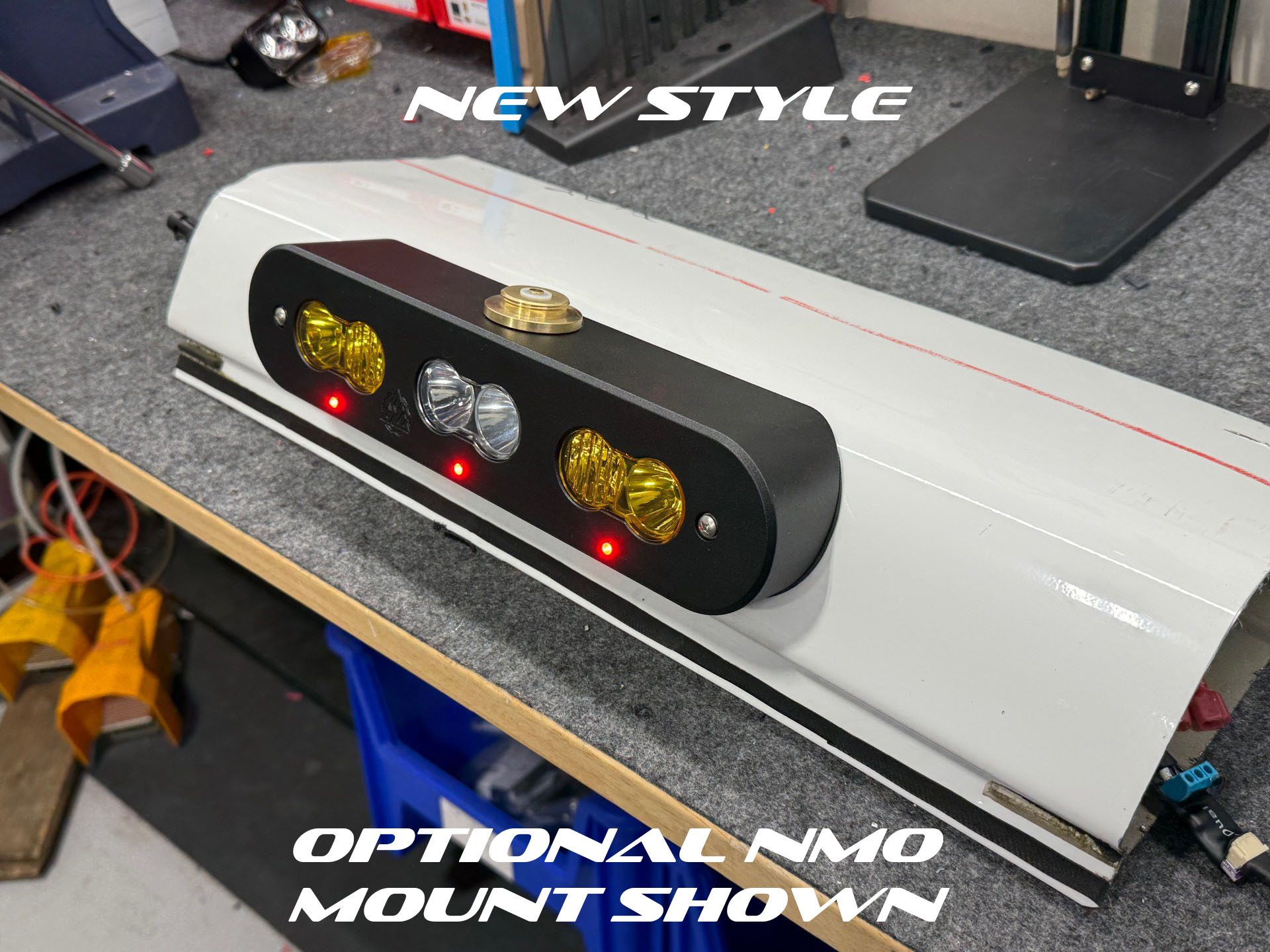

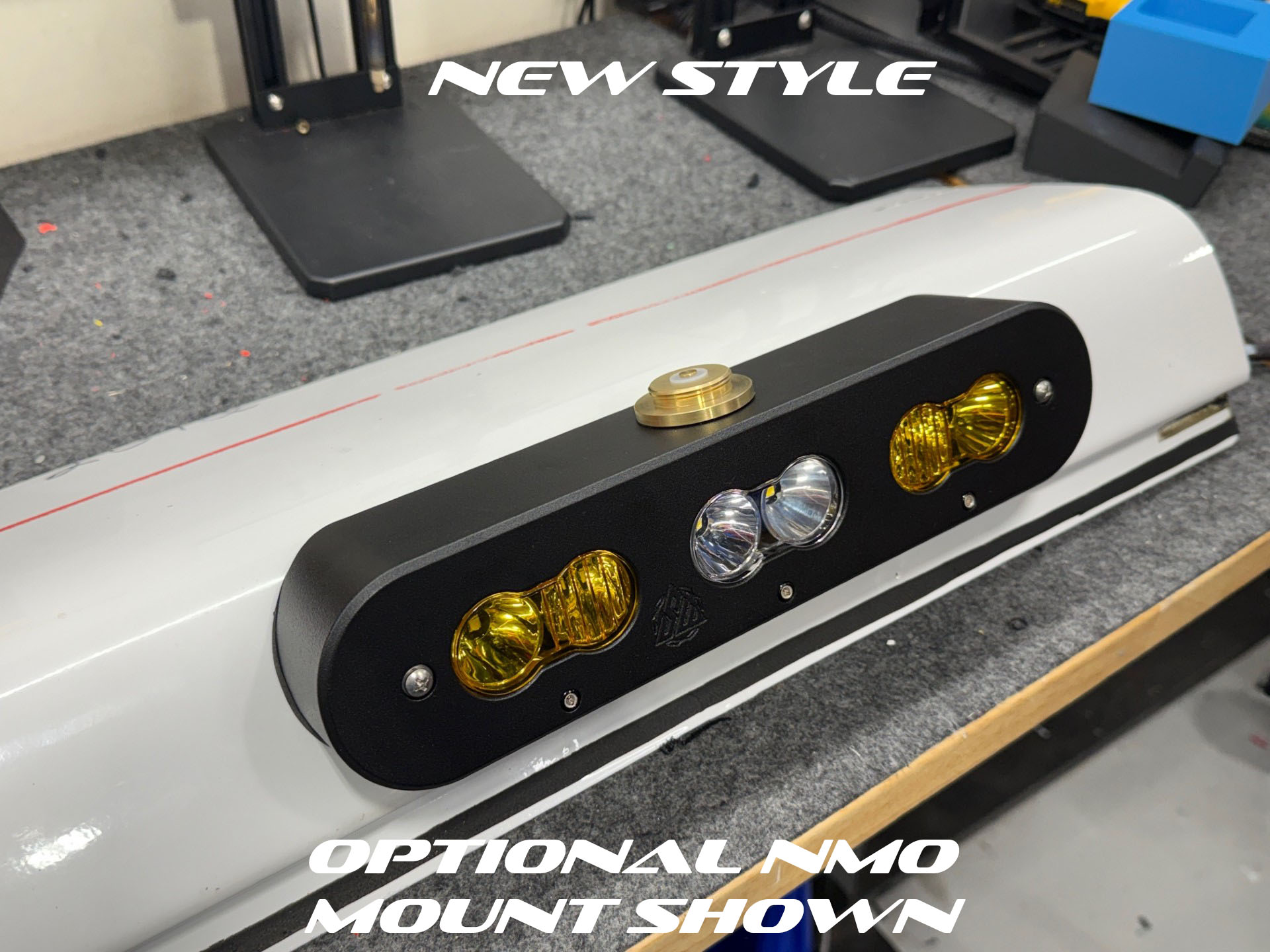

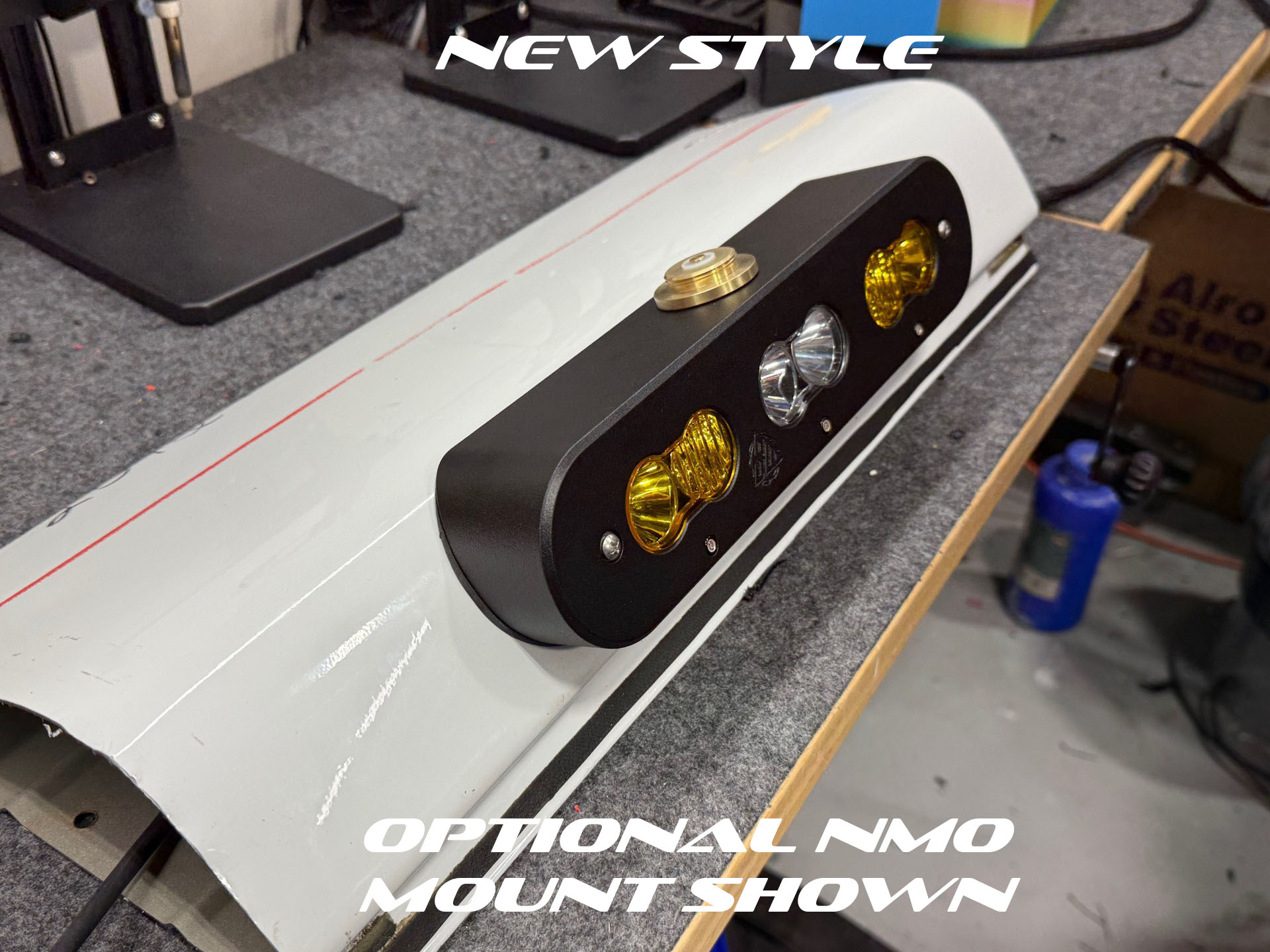

Update! We recently redesigned this a little from its original GJ from. We were able to remove the exposed screws for the S2 lights with our patent pending mounting system.
We have some produced and will be shipping on the 1st of March 2026
Overview

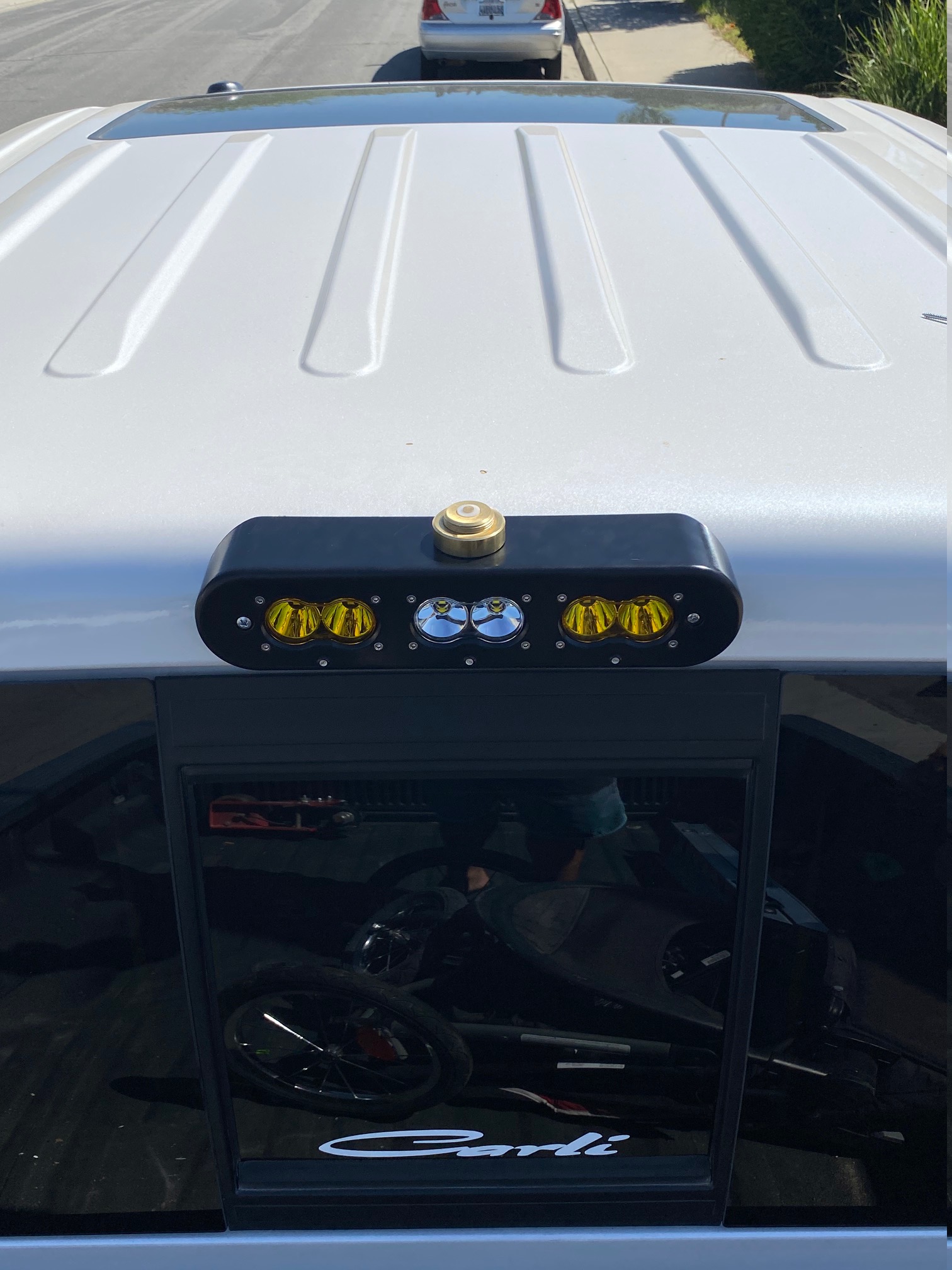

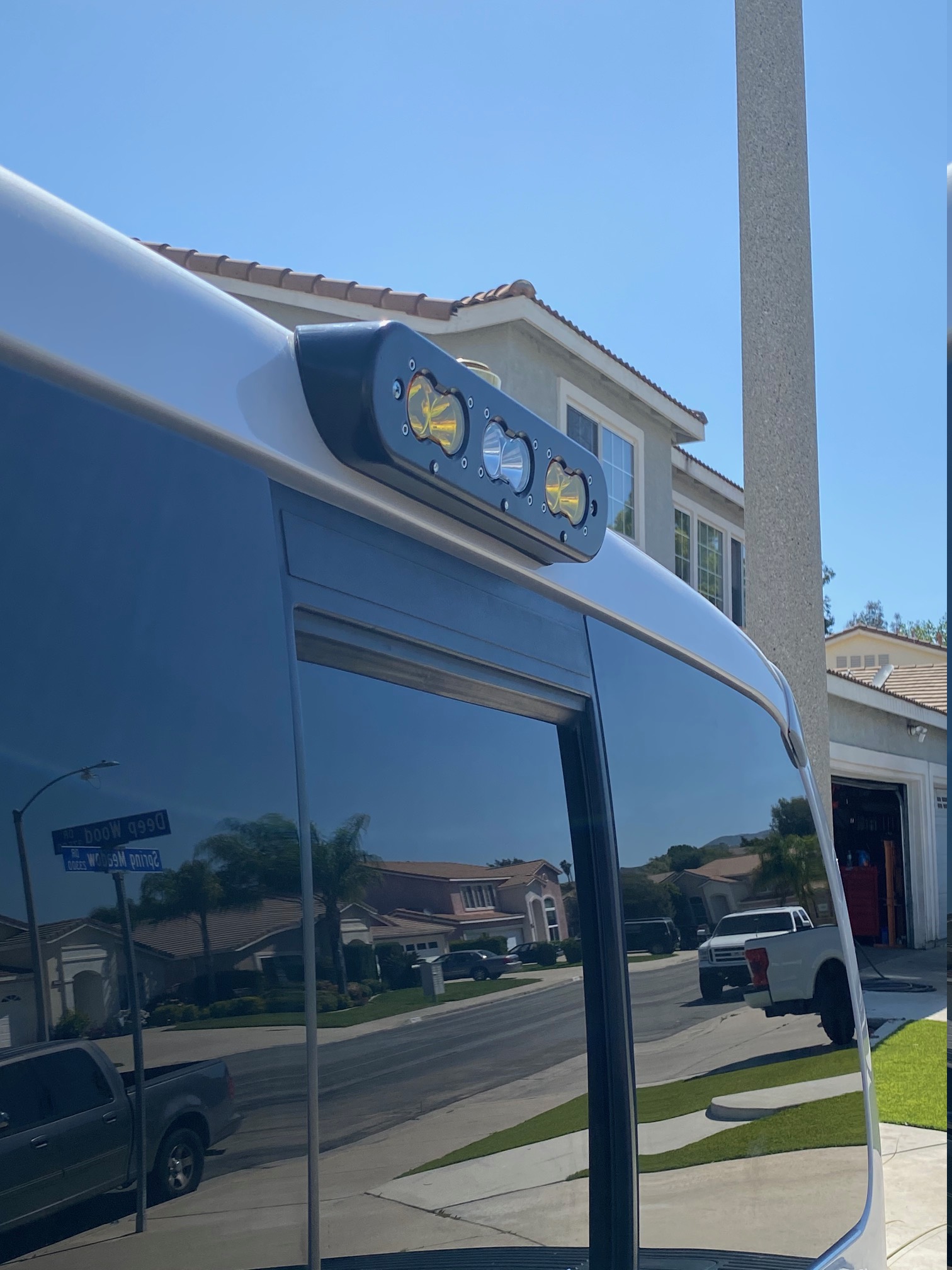

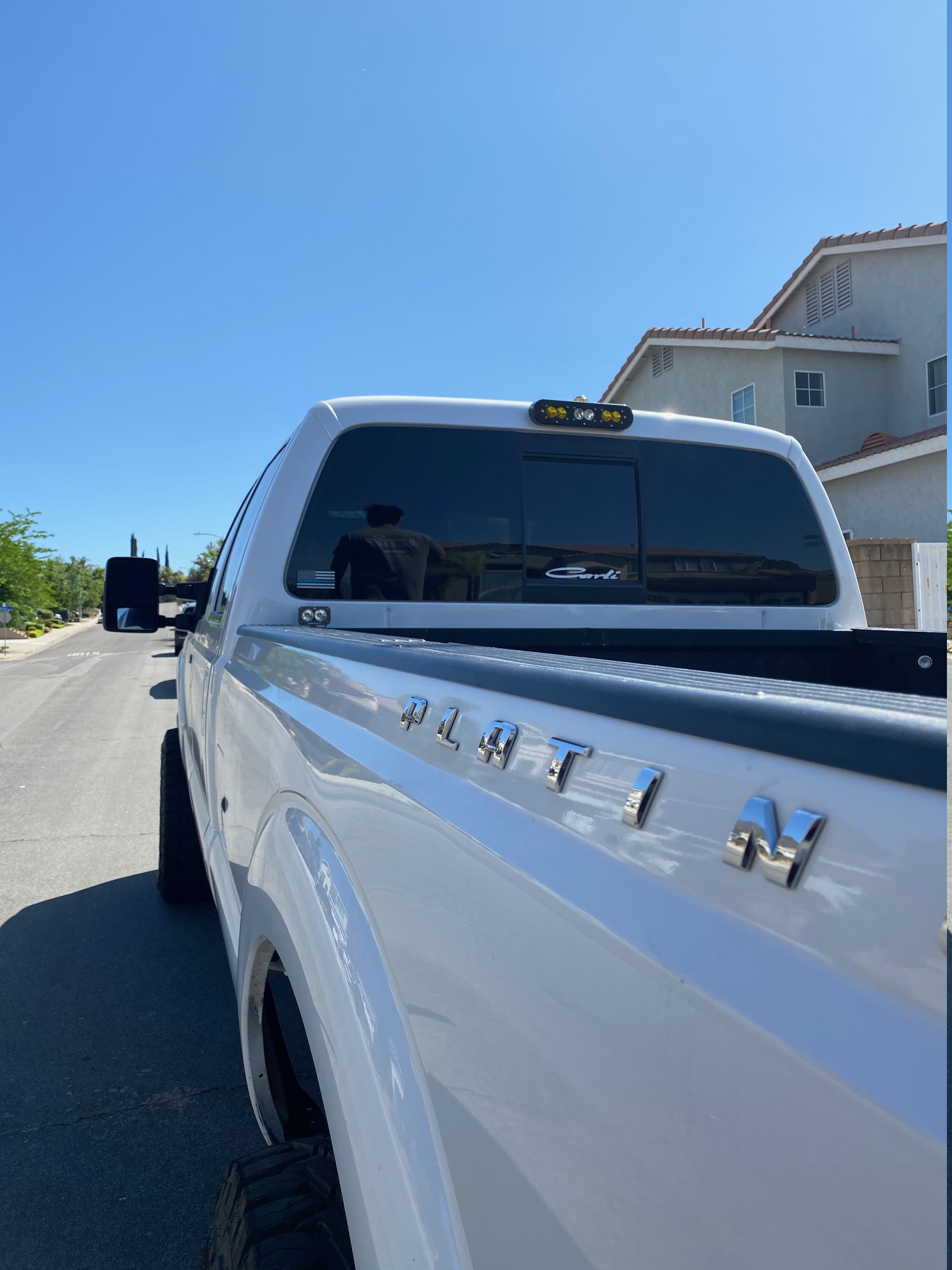

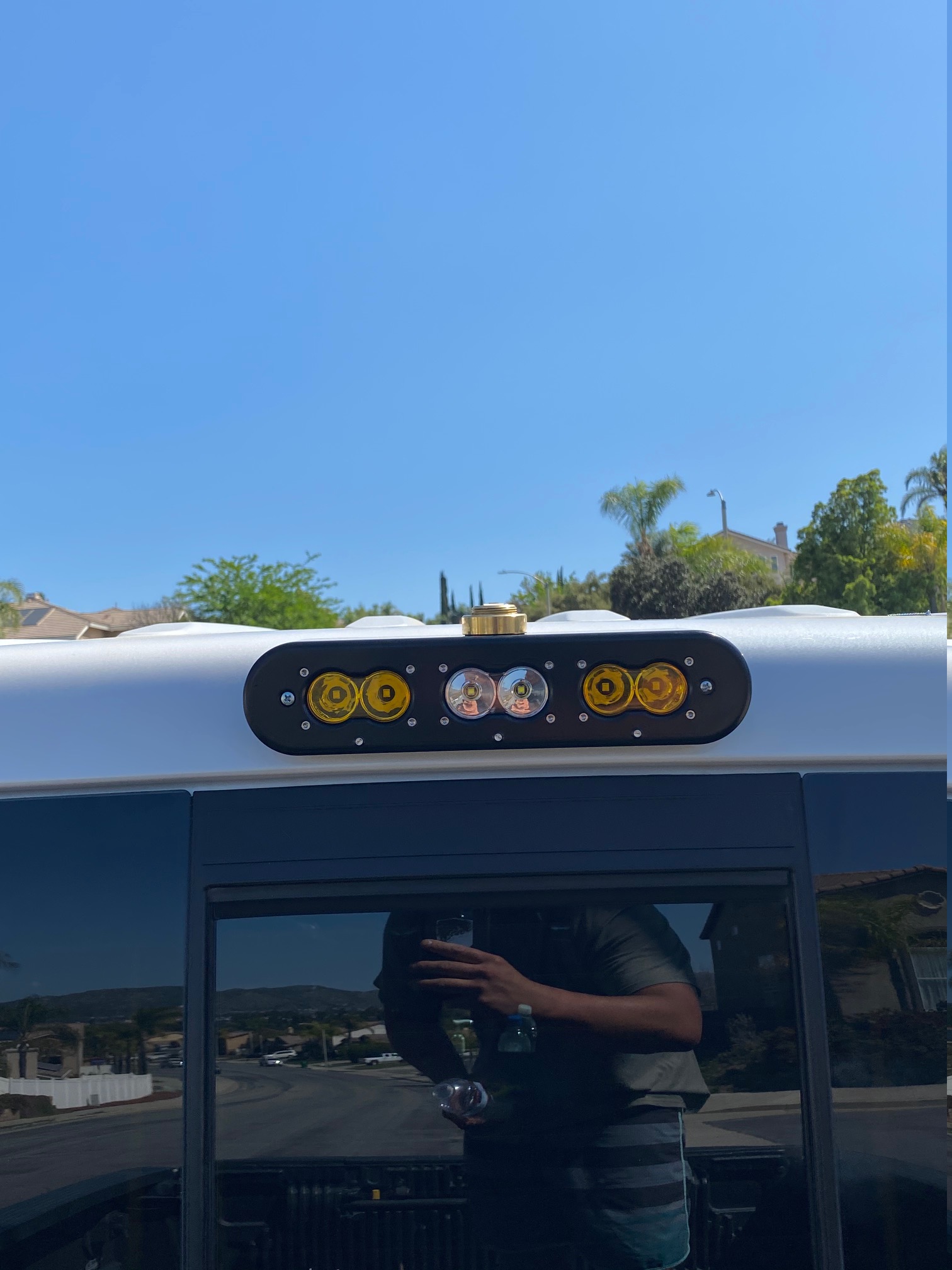

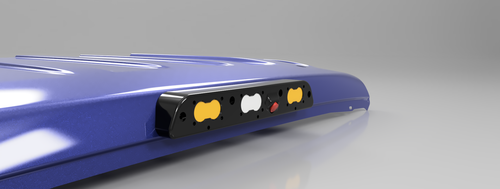

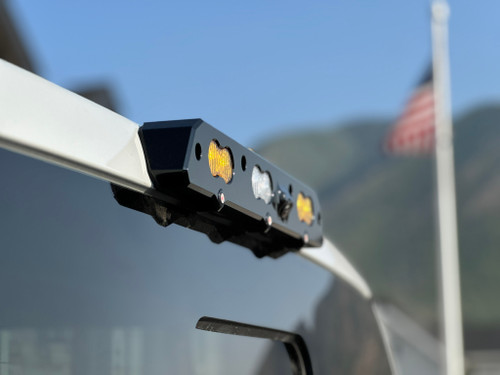

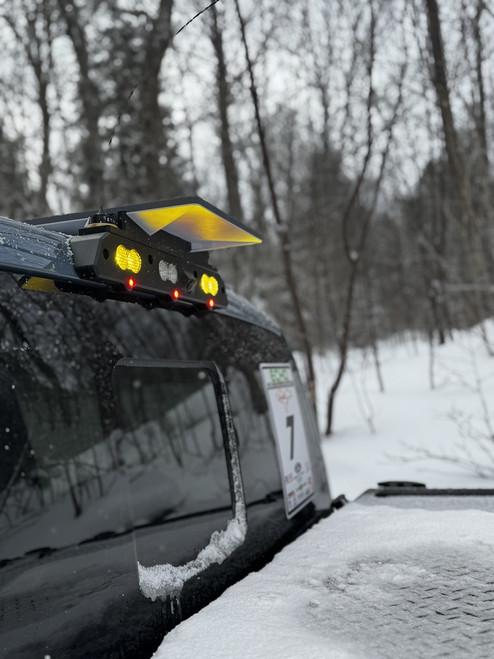

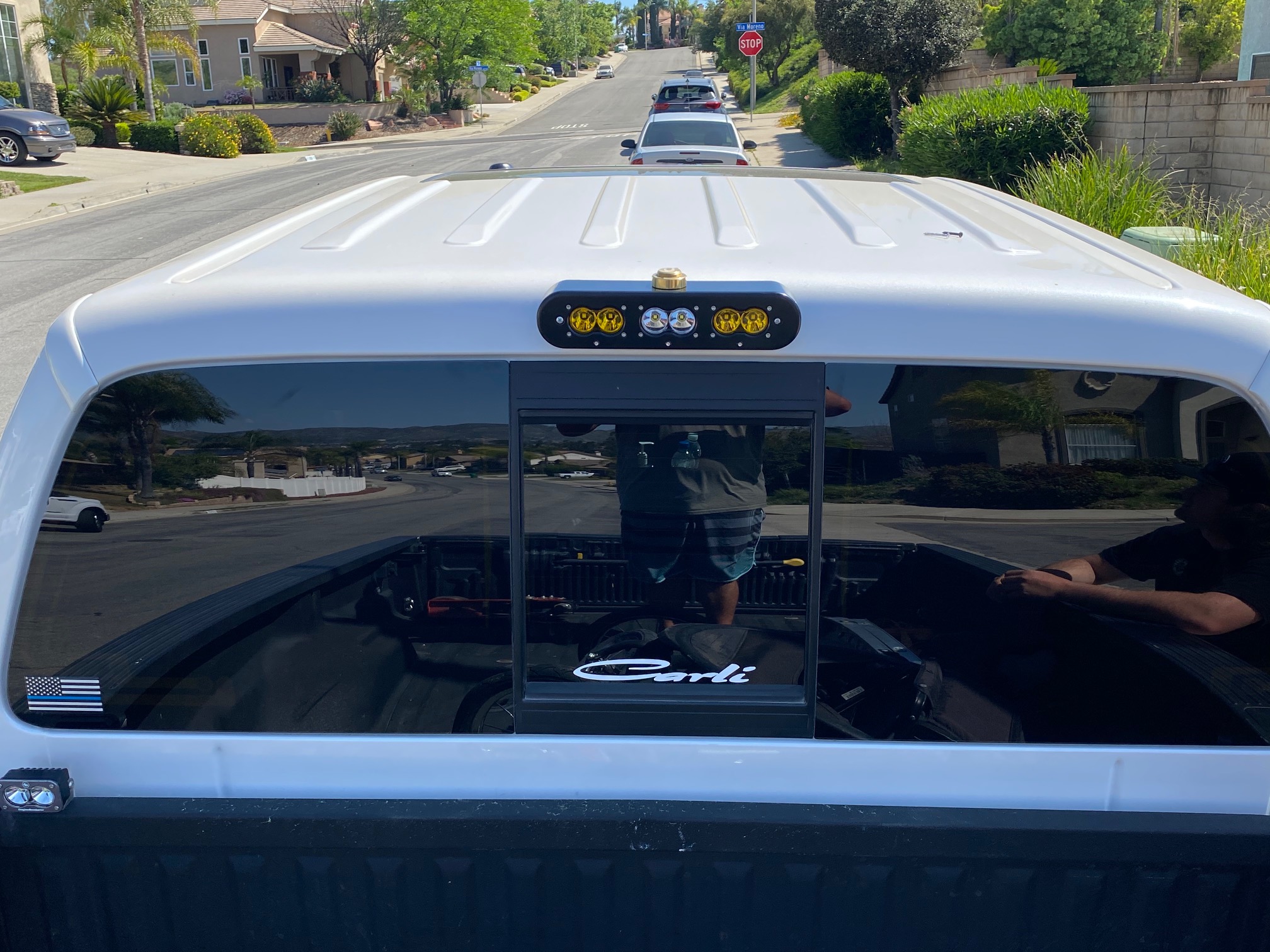

Our billet aluminum 3rd brake light for the 2011-2016 F250/F350 is the first light to market that allows for installation of 3 Baja Designs S2 lights and retains the factory styling of the light.
- CNC Machined from billet 6061 Aluminum
- Uses factory bolt holes
- Integrated gasket to seal the light enclosure to the cab
- No drill installation, uses factory mounting holes
- Three 1W Red LED brake lights
Wiring Harness Options
All wiring harnesses are cut to length and pre-terminated with weatherpack connectors and wrapped in soft loom for easy installation in your truck. The factory integration for the marker lights and cargo light uses the factory connector and does not require any cutting or soldering.
Basic Harness
This harness provides integration of the 3 marker/brake light LED's with factory wiring harness as well as connecting the center light to the cargo light circuit. Two additional circuits are provided to connect the outer lights to power switches, the harness terminates in the passenger kick panel.
Reverse Light Harness
This harness has all the features of the basic harness, but also connects the center light to the reverse light circuit so that it comes on automatically when the truck is placed in reverse.
Stop/Tail/Turn Harness with Reverse
This harness includes a stop/tail/turn controller to integrate the outer to lights with the factory brake/turn signals and also connects the center light to the reverse light circuit so that it comes on automatically when the truck is placed in reverse. It includes inputs for connecting to your switches for:
- Master power to turn the system on/off
- Strobe Function
- Strobe pattern change (momentary switch to be optionally mounted in the dash)
- Constant on override to disable the turn/brake integration
